| 1064nm f-theta lens. 1064nm激光场镜 |
产品编号 | 焦距 | 工作范围 | 入射光斑 | 聚焦光斑 | D1 + D2 | 螺纹接口 |
|---|---|---|---|---|---|---|---|
| F435F-W1064 | ZLAS-009F | 435mm | 300mm*300mm | 20mm | 20um | mm | M85*1 |

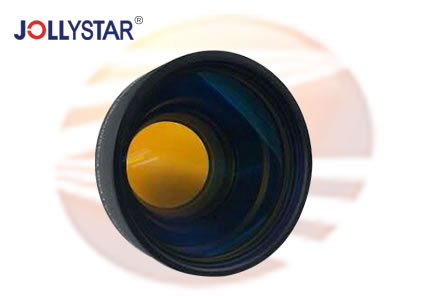

| F435-W1064 | ZLAS-009 | 435mm | 300mm*300mm | 18mm | 22um | 34mm | M85*1 |
| F380F-W1064 | ZLAS-006F | 380mm | 262mm*262mm | 12mm | 23um | 36mm | M85*1 |

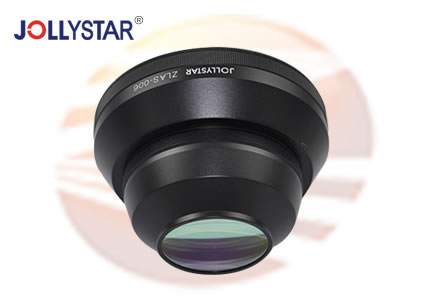

| F380-W1064 | ZLAS-006 | 380mm | 262mm*262mm | 16mm | 22um | 34mm | M85*1 |

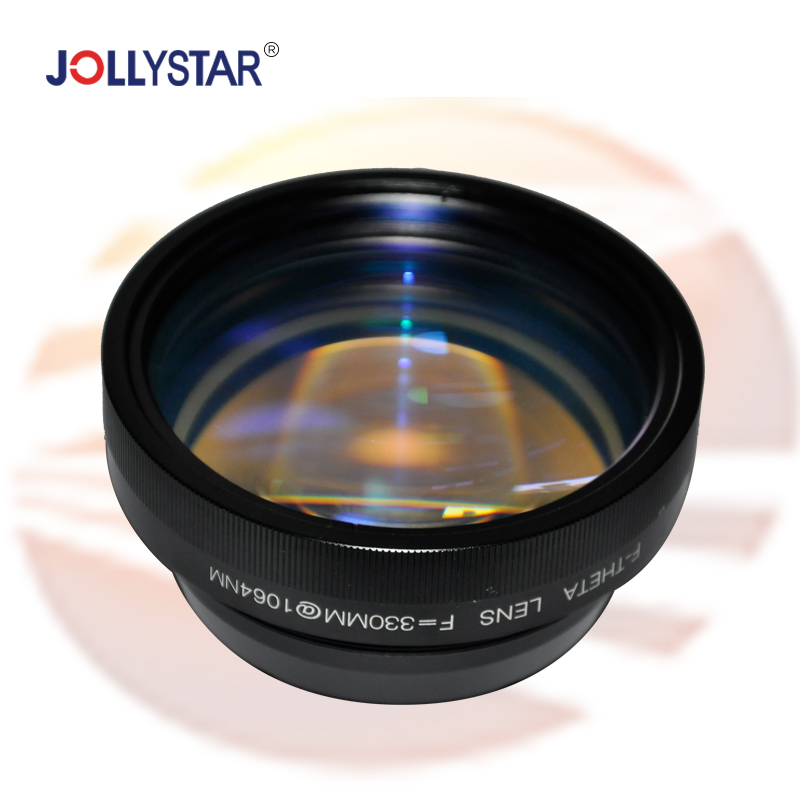

| F330-W1064 | ZLAS-008 | 330mm | 228mm*228mm | 16mm | 21um | 34mm | M85*1 |

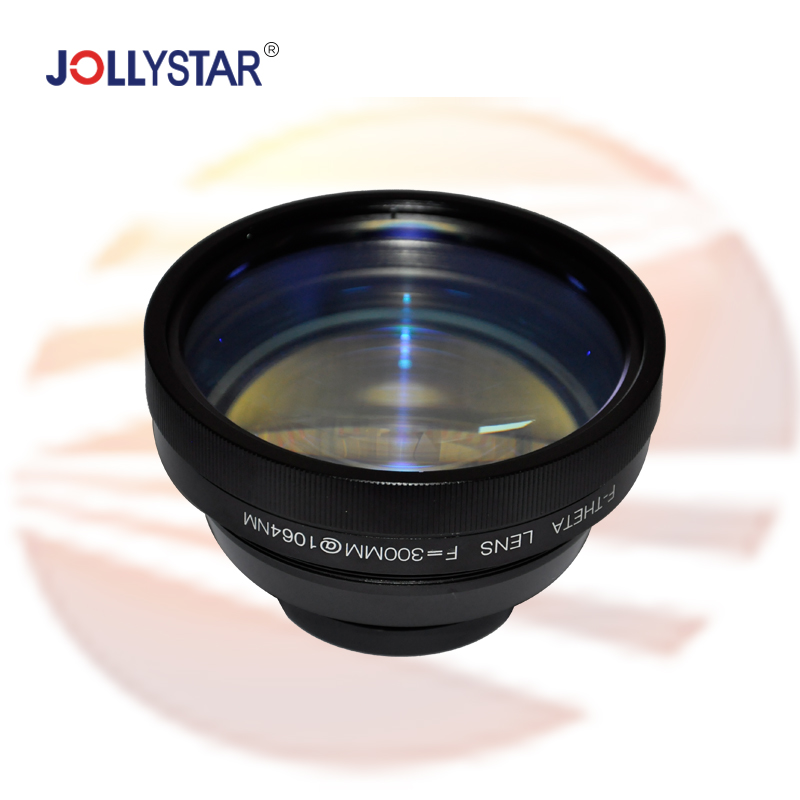

| F300-W1064 | ZLAS-007 | 300mm | 207mm*207mm | 16mm | 21um | 34mm | M85*1 |
| F254F-W1064 | ZLAS-002F | 254mm | 175mm*175mm | 11mm | 22um | mm | M85*1 |

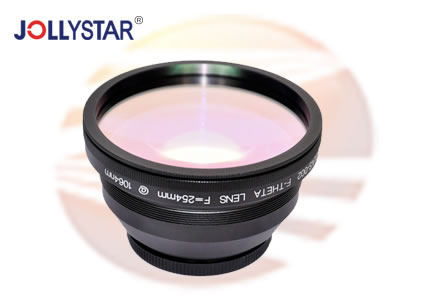

| F254-W1064 | ZLAS-002 | 254mm | 175mm*175mm | 16mm | 20um | 34mm | M85*1 |

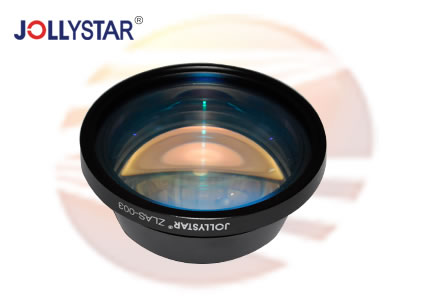

| F210-W1064 | ZLAS-003 | 210mm | 150mm*150mm | 16mm | 18um | 34mm | M85*1 |
| F167FT-W1064 | ZLAS-004KFT | 167mm | 61mm*61mm | 16mm | 17um | 26mm | M85*1 |

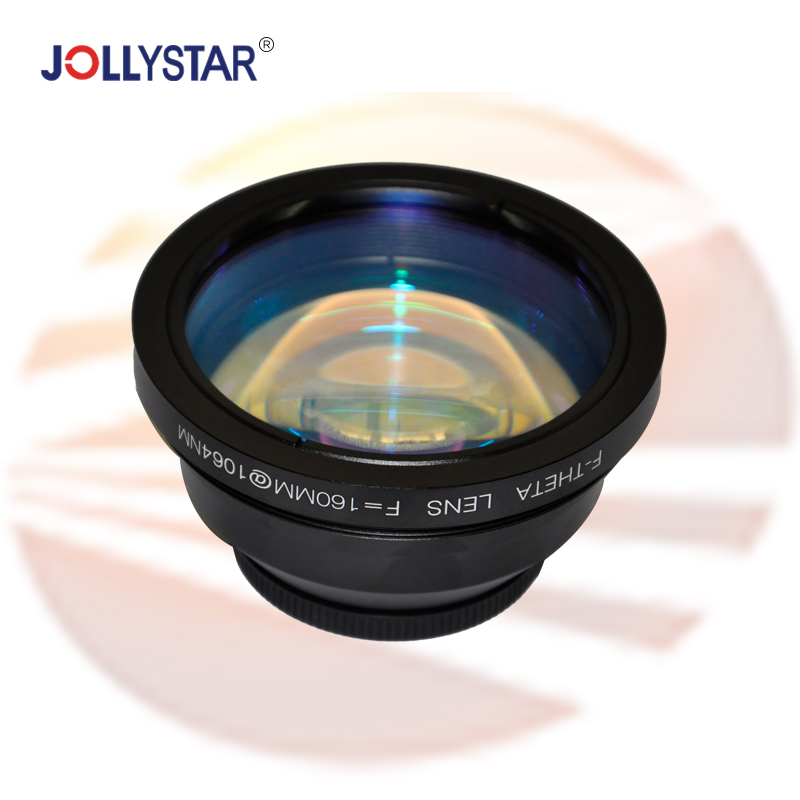

| F160-W1064 | ZLAS-001 | 162mm | 100mm*100mm | 12mm | 12.5um | 32mm | M85*1 |
| F100FT-W1064 | ZLAS-006FT | 104mm | 64mm*64mm | 9mm | 11um | 26mm | M85*1 |
| F100-W1064 | ZLAS-004 | 100mm | 62mm*62mm | 9mm | 9.5um | 32mm | M85*1 |
